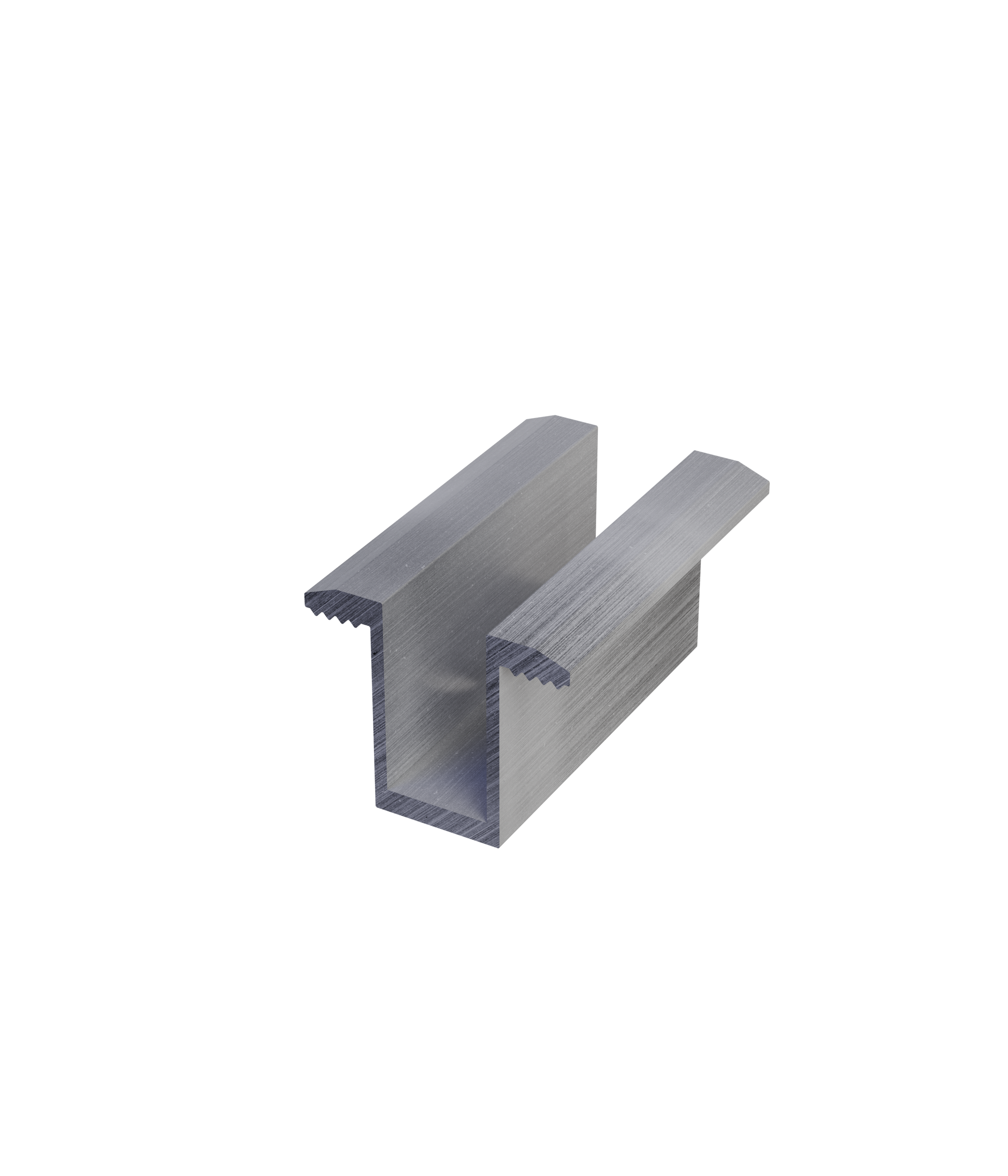

MID CLAMP

The Oshiclamp Mid module clamps is suitable for 30, 35 or 40mm module frames.
The clamp is secured to the mounting below with an M8 stainless steel cap screw. The clamp has a spacing of 22mm which allows for adequate module spacing.

Applications: Standard PV module frame mounting

SPECIFICATIONS:

MATERIAL:
Aluminuim alloy 6063-T5

SURFACE TREATMENT:
Anodized

MAX. PULL-OFF FORCE
8.17 kN

STANDARD MOUNTING:
M8 Cap screw

DIMENSIONS:
50 x 29 x 38 mm

WEIGHT:
32.5g
