KLIPLOK

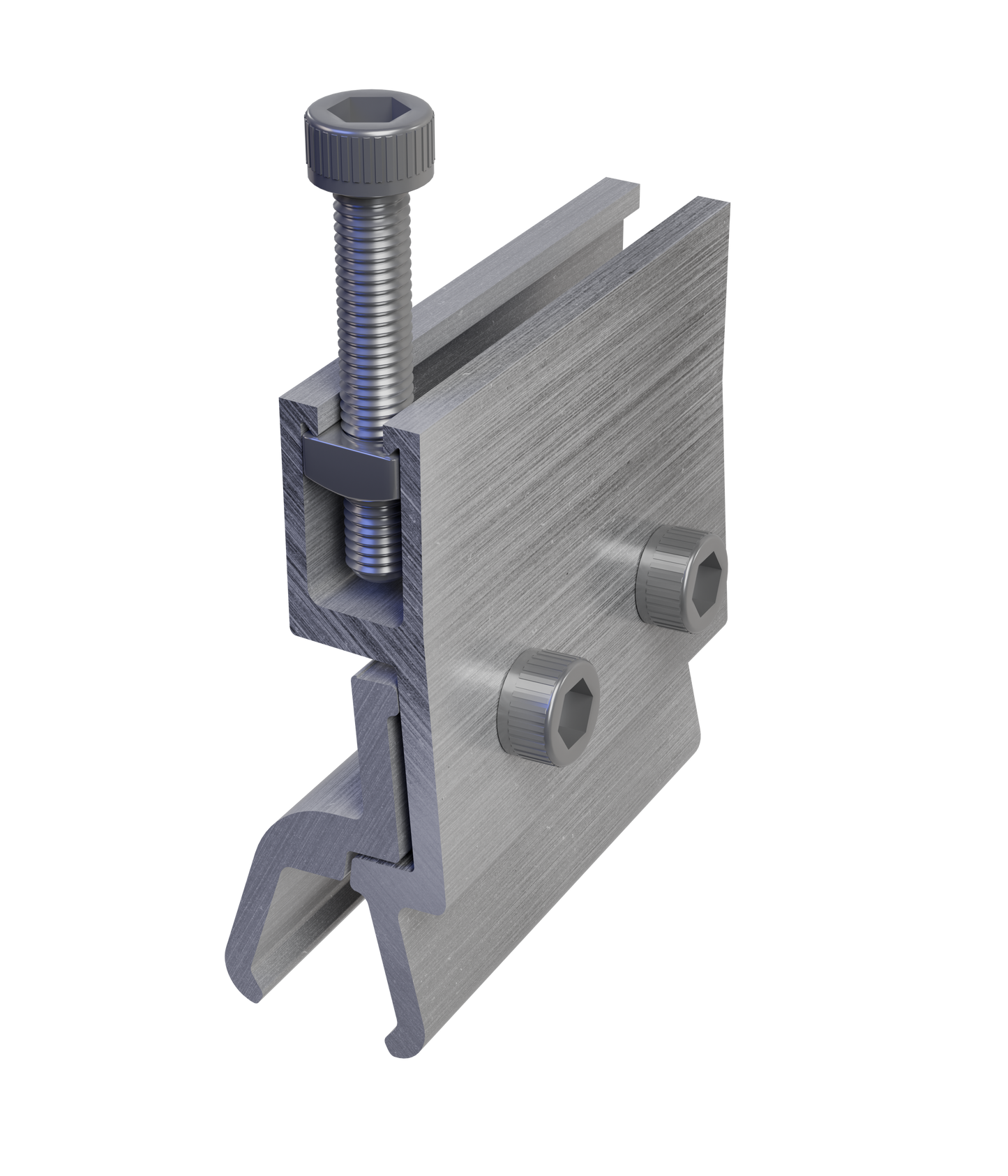

The Oshiclamp Kliplok mounting hardware provides a cost effective solution for mounting solar modules onto a Kliplok concealed standing seam roof sheeting without the need for a rail substructure or penetrations The clamp has a non-abrasive clamping action that doesn’t require any penetrations as is suitable on most common roof coatings except copper. The clamp will connect to the roof sheet when the two M8 bolts are tightened to 15 Nm. The clamp includes a custom an aluminuim rear M8 nut that allows direct mounting of module clamps in a railless system, and also offers more flexibility for installation and alignment purposes.

Applications: Kliplok and Klip-Tite concealed standing seam roof sheeting

SPECIFICATIONS:

MATERIAL:
Aluminium alloy 6063-T5

SURFACE TREATMENT:
Anodized

STANDARD MOUNTING:
M8 Cap screw

MAX. PULL-OFF FORCE (ROOF):
1.19 kN

MAX. PULL-OFF FORCE (M8 ALU-NUT):
16.3 kN

DIMENSIONS:
100 mm x 84 x 38 mm

WEIGHT:
229g
