IBR RAILLESS

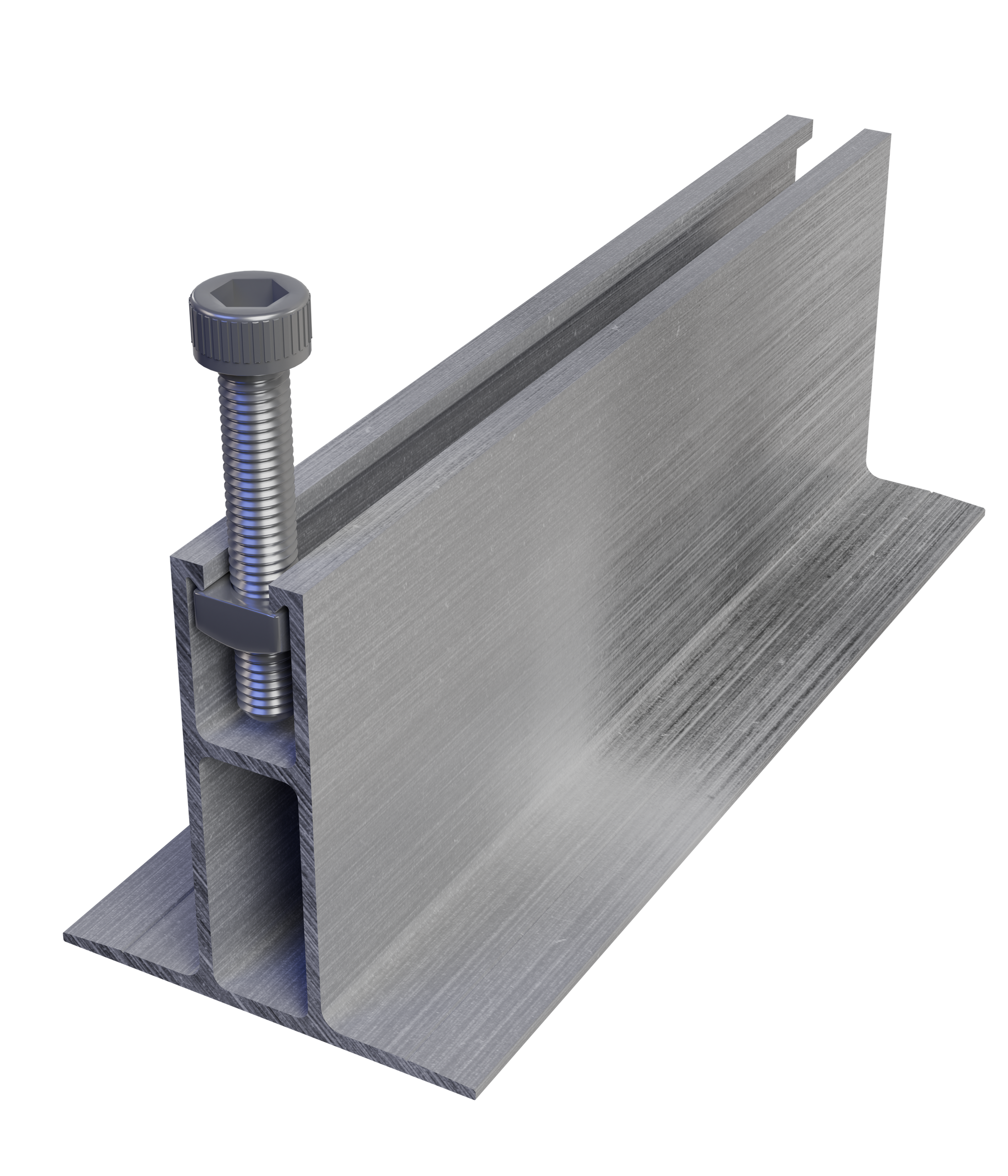

The Oshiclamp IBR Railless mounting hardware provides a cost-effective solution for mounting solar modules onto IBR roof sheeting without the need for a rail substructure or additional purlins. The clamp is mounted to the roof on top of an EPDM rubber seal via four stainless steel sheet self-tapping sheet screws with bonded washers. The EPDM rubber padding separates the roof sheet from the clamp to prevent galvanic corrosion and frictional damage to the coating of the sheeting. The bonded washers and the EPDM rubber also form a completely watertight seal.

Applications: IBR and popular trapezoidal roof sheeting

SPECIFICATIONS:

MATERIAL:
Aluminuim alloy 6063-T5

SURFACE TREATMENT:
Anodized

STANDARD MOUNTING:
M8 Cap screw

MAX. PULL-OFF FORCE (ROOF):
5.67 kN

MAX. PULL-OFF FORCE (M8 ALU-NUT):
16.3 kN

DIMENSIONS:
250 x 70 x 65 mm

WEIGHT:
315g
