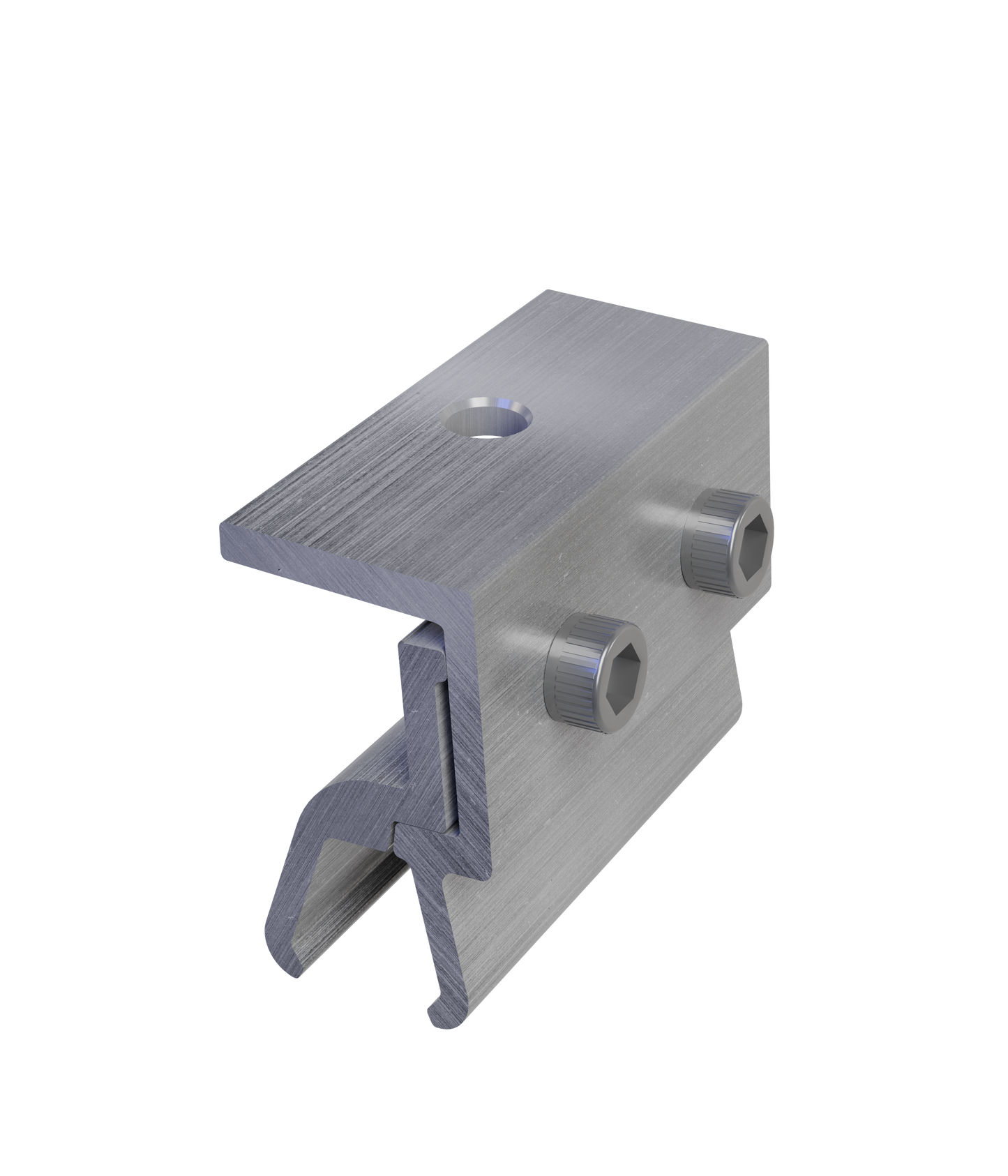

OC_Kliplok_RL

The Oshiclamp Oc Kliplok Rail mounting hardware provides an approved solution for mounting solar modules onto a concealed standing seam roof sheet Kliplok roof sheet. The clamp has a non-abrasive clamping action that doesn't require any penetrations

Applications: Oc Kliplok Rail, Kliplok and Klip-Tite concealed standing seam roof sheeting

SPECIFICATIONS:

MATERIAL:
Aluminum alloy 6063-T5

SURFACE TREATMENT:
Anodized

MOUNTING STANDARD:
M8 Cap screw

MAX. PULL-OFF FORCE:
2.39kN

DIMENSIONS:
100 mm x 62 x 41 mm

WEIGHT:
262g
